Stainless Steel Pipes & Tubes

Stainless Steel TP 317 / 317L Seamless Tubes

ASTM A213 TP 317 SS Seamless Tubes Suppliers, Stainless Steel 317L Tubing Manufaturer, Stainless Steel 317 Cold Drawn Tubes Stockholder, SS 317L Tubing Exporter in india.

Stainess Steel 317 / 317L Seamless Tubes

MBM Tubes is one of the well-known exporter, manufacturer, stockist, supplier and stock holder of a qualitative range of Stainless Steel 317 Seamless Tubing that are being designed as per the national and international standard quality of raw materials. We supply all of the SS 317 Cold Drawn Tubes for use in the oil or natural gas industries. Our Stainless Steel Cold Drawn 317L Tubes shall be suitable for bending, flanging, and similar forming operations, and also for fusion welding.

SS 317L Seamless Tubing can be supplied in cut-to length sizes and as well fabricated or machined to meet up your customized piping requirements. MBM Tubes also offer SS 317 / 317L Tubes in different sizes, thickness and standards as per made to order requirements given by our customers.



Stainless Steel 317 / 317L Seamless Tubing Specification

Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG - 10 SWG

Outer Diameter : 3.00 mm - 219.10 mm

Wall Thickness : 0.40 mm - 12.70 mm

Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH

Length : Upto 30 meters, Custom Cut Lengths

Specifications : ASTM A213 / ASTM SA213

Types : Round, Square, Rectangle, Coil, "U" Shape, Hydraulic & Honed Tubes



STANDARD UNS WERKSTOFF NR.
SS 317 S31700 1.4449
SS 317L S31703 1.4438



Stainless Steel DIN 1.4449 / 1.4438 Seamless Tubes Stockist, SS UNS S31700 / S31703 Seamless Tubing, SS 317 Cold Drawn Tubes, SS 317L Seamless Tubes, SS 317 Seamless Tubing in India.

Chemical Composition

SS 317 317L
Ni 11 - 14 11 - 15
N - -
Cr 18 – 20 18 - 20
C 0.08 max 0.035 max
Si 1 max 1 max
Mn 2 max 2 max
P 0.040 max 0.040 max
S 0.030 max 0.03 max
Mo 3.00 - 4.00 3 – 4

Mechanical Properties

Density 8.0 g/cm3
Melting Point 1454 °C (2650 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %

Physical Properties (Room Temperature)

Specific Heat (0-100°C) Thermal Conductivity Thermal Expansion Modulus Elasticity Electrical Resistivity Density
500 14.6 16.5 193 7.4 7.99
J.kg-1.°K-1 W.m -1.°K-1 mm/m/°C GPa μohm/cm g/cm3

Marking of packages

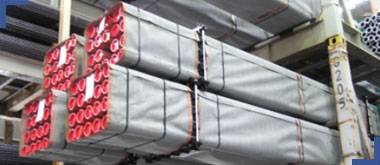

Stainess Steel 317 Seamless Tubes Packaging

ASTM A213 TP317 Stainless Steel Seamless Tubes Packing

Stainess Steel 317L Seamless Tubes Packaging

ASTM A213 TP317L Stainless Steel Seamless Tubes Packing

Types of Stainless Steel TP 317 / 317L Seamless Tubing
    • Stainless Steel 317 Seamless Tubes
    • SS TP 317L Seamless Tubes
    • Stainless Steel 317L Tubes
    • SS 317 UNS S31700 Tubes
    • Stainless Steel 317 Cold Drawn Tubes
    • ASTM A 213 Stainless Steel 317 Seamless Tubes
    • DIN 1.4449 SS 317 Seamless Tubing
    • SS TP 317L Cold Drawn Tubes
    • AISI SS TP 317L Tubing
    • Stainless Steel 317 Tubing
    • SS UNS S31703 Seamless Tubing
    • Stainless Steel 317 Seamless Tubing
    • DIN 1.4438 Stainless Steel 317L Seamless Tubes
