ASTM A182 / 240 SS Flanges Suppliers, ASME / ANSI B16.5 Stainless Steel Flanges Manufaturer, SS Slip On Flanges Stockholder, SS Weld Neck Flanges Exporter in india.

Stainess Steel Flanges

MBM Tubes is one of the renowned manufacturer, exporter, stockist, stock holder and supplier of a qualitative range of Stainless Steel Flanges that are being designed as per the national and international standard quality of raw materials.

Flange is a forged or a cast ring that is designed to join parts of a pipe or any other equipment that needs a midway joining point. Our SS Flange Products include SS Weld Neck Flanges (WNRF), SS Slip-On Flanges (SORF), SS Socket Weld Flange (SWRF), SS Blind Flanges (BLRF), SS Lap Joint Flanges (LJRF), SS Spectacle Blind Flanges, SS Threaded Flanges, and others. Stainless Steel Weld Neck Flanges have a long tapered hub and are often used for high pressure applications, whereas Blind flange is a kind of round plate with no centre hole and is being used to blank off the ends of piping, valves and pressure vessel opening.

We specialise in manufacturing customized shape and special size flange for our esteemed clients. All our flange products are being supplied by means of appropriate test certificates of finished products and raw materials. With an extensive stainless steel inventory, we carry a wide range of Stainless Steel Flanges in a variety of sizes and pressure ratings to meet your project’s needs— including hard-to-find configurations and sizes.



Stainless Steel Flanges Specification

Size : 1/2” (15 NB) to 36” (1200 NB)

Standards : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Pressure Ratings : Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Specifications : ASTM A 182 / A 240, SA 182 / SA 240

Grades : F304/ 304L/ 304H/316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ ETC.

Types : Weld neck Flanges (WNRF), Slip-on Flanges (SORF), Blind Flanges (BLRF), Lap Joint Flanges (SOLJ), Socket-weld Flanges (SWRF), Screwed (Threaded) Flanges, Long weld neck Flanges (LWNRF), Spectacle Blind Flanges, Spacer & Blind Flanges, Ring Type Joint Flanges (RTJ), Reducing Flanges, Raised Face (RF) Flanges, Orifice Flanges, Large Diameter Flanges, Custom Flanges, Drawing Flanges, Forged Flanges, Plate Flanges, Flat Face Flanges, etc.



Stainless Steel Socket weld Flanges Stockist, SS Blind Flanges, SS Lap Joint Flanges, SS WNRF Flanges, SS Spectacle Blind Flanges, Steel Flanges Suppliers in India.

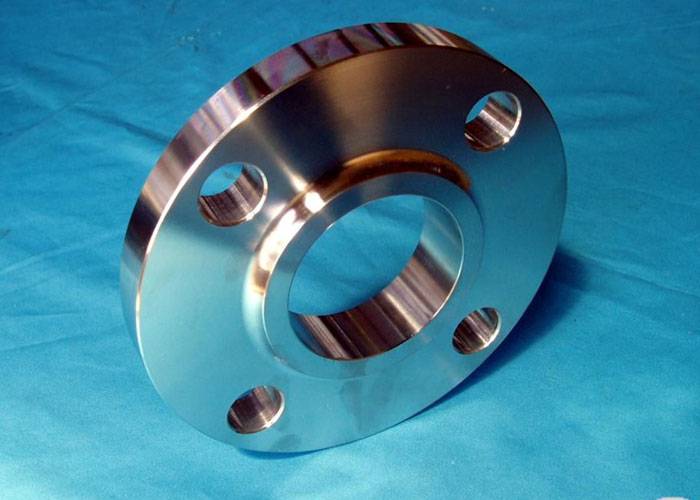

Stainless Steel Slip On Flanges (SORF)

SS Slip On Flanges are a popular type of flanges. These types of flanges slide over the end of piping and are being then welded in place. These flanges are perfect for lower pressure applications. And thus, the planned strength from a Slip On flange under internal pressure is of the order of two-thirds that of Welding Neck flanges, and their life under fatigue is about one-third that of the latter.

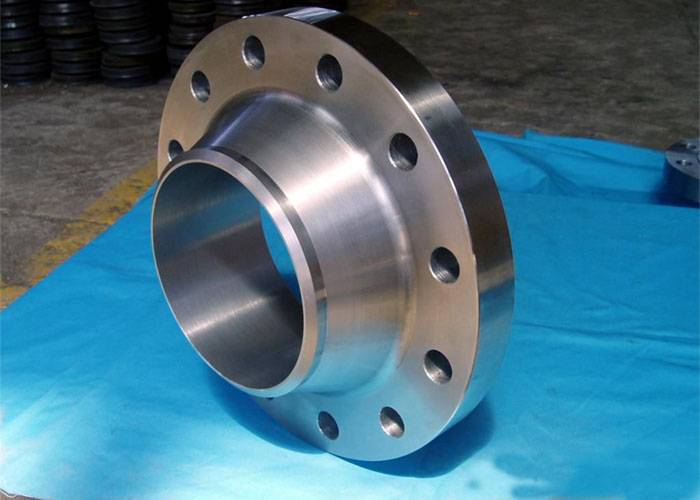

Stainless Steel Weld Neck Flanges (WNRF)

A weld neck flange is also known as a high-hub flange and tapered hub flange. Our SS Weld Neck Flanges have an extensive tapered hub and are frequently used for soaring pressure appliances. A weld neck flange includes a spherical fitting by means of a protruding rim in the region of circumference. Such flanges are appropriate for their usage in argumentative settings that have intense pressure, temperature or other sources of stress.

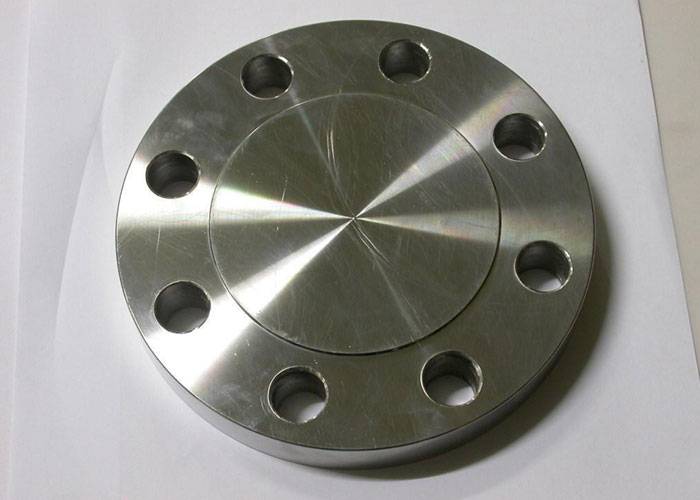

Stainless Steel Blind Flanges (BLRF)

Blind Flanges are manufactured with no bore and are used to blank off the ends of piping, Valves and pressure vessel openings. From the stance of inner pressure and bolt loading, these blind flanges, mainly in the bigger sizes, are the most greatly stressed flange types.

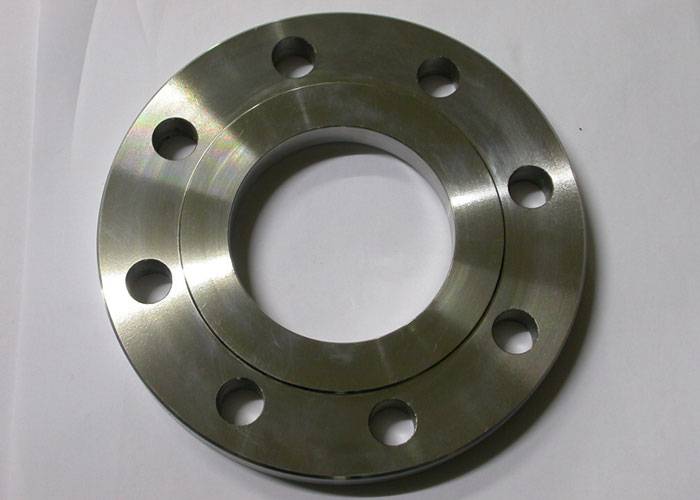

Stainless Steel Socket Weld Flanges (SWRF)

Socket Weld flanges were at first developed for use on small-size high pressure piping. Their static strength is equal to Slip On flanges, but their fatigue strength is about 50% greater than double-welded Slip On flanges.

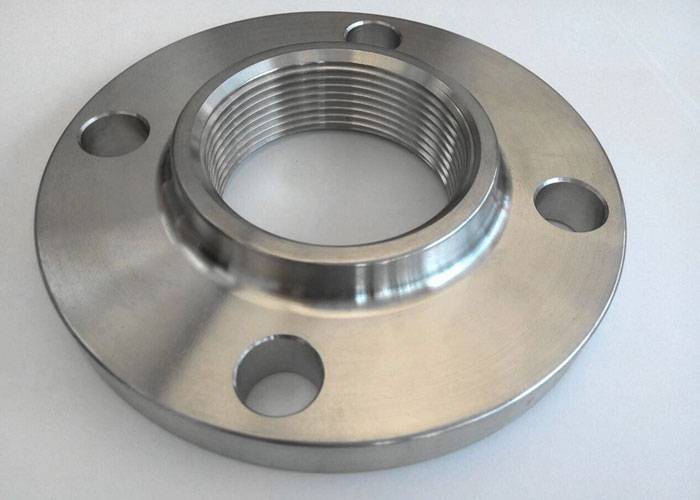

Stainless Steel Threaded Flanges

Threaded Flanges are used for exceptional conditions with their major gain being that they can be connected to the pipe devoid of any welding. A threaded flange or fitting is not appropriate for a pipe system by means of thin wall thickness, for the reason that cutting thread on a pipe is not possible. As a result, thicker wall thickness should be chosen.



Stainless Steel Lap Joint Flanges (LJRF)

Lap Joint Flanges have all the same common dimensions as any other flange. However, it does not have a raised face, as they used in combination by means of a "Lap Joint Stub End". These flanges are almost identical to a Slip On flange with the exemption of a radius at the junction of the flange face and the bore to put up the flanged part of the Stub End.



Stainless Steel Spectacle Blind Flanges

A spectacle blind is a safety device used to cut off a part of line or portion of equipment when the line or equipment requires be inspecting or removing from service. It is different than a valve in such a way that the blind is a permanent or long term isolation device.
